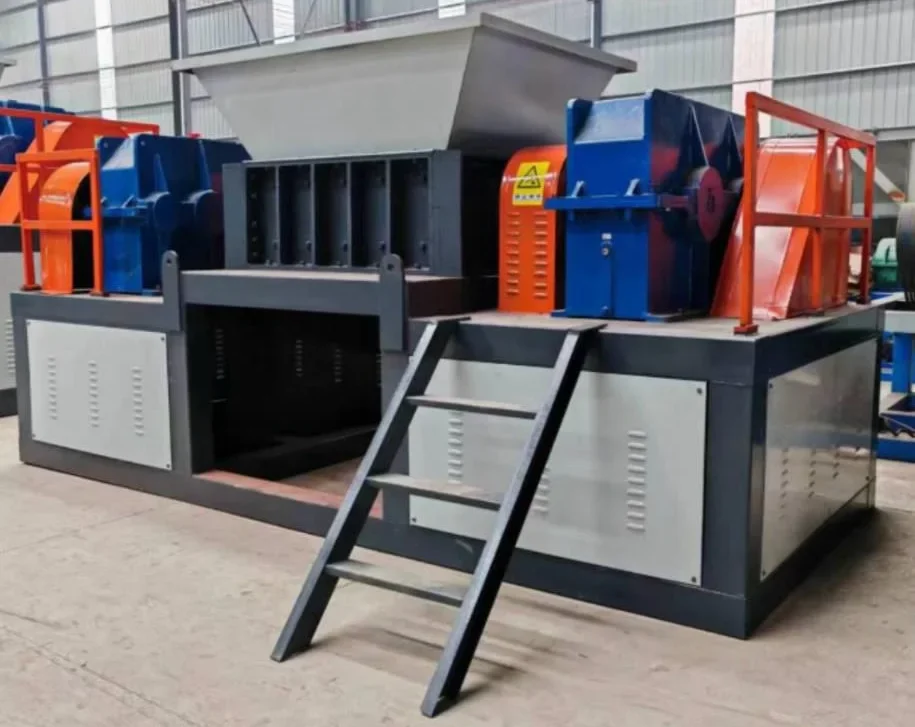

Trio Shredder Machine
Standard Shredder TRIO TS5
The TRIO TS5 is a heavy-duty machine that delivers powerful and smooth performance with an output of 5 TPH. It features a 1200 × 800 mm chamber, 10–12 RPM rotary speed, and 55 + 55 kW power, making it ideal for heavy material handling. The machine is equipped with 30 blades having a 400 mm diameter and 40 mm thickness, ensuring strong cutting performance and long service life, while the 180 mm hexagonal shaft provides better torque and stability.
For enhanced safety and efficiency, it includes a star-delta soft start system and automatic reverse overload protection, ensuring smooth startup and protection against overload conditions.
| Model | TRIO TS5 |
| Output (TPH) | 5* |
| Chamber Dimensions (mm) | 1200*800 |
| Rotary Speed (RPM) | 10–12 |
| Rated Power (Kw) | 55+55 |
| Number of Blades(Pc) | 30 |
| Blade Diameter (mm) | 400 |
| Blade Thickness (mm) | 40 |
| hexagonal type (mm) | 180 |
| Quantity (Pc) | 30 |
| Soft start using a star-delta voltage reduction connection | Included |
| Automatic reverse overload. | Included |
Trio Shredder Machine
Standard Shredder TRIO TS10
The TRIO TS10 is a high-capacity heavy-duty machine that delivers industrial-level performance with an output of 10 TPH. It features a 1500 × 1000 mm chamber, 10–12 RPM rotary speed, and 75 + 75 kW rated power, making it perfectly suited for continuous and demanding operations. The machine is equipped with 36 strong blades with a 400 mm diameter and 40 mm thickness, ensuring heavy cutting performance and long durability, while the 245 mm hexagonal shaft provides high torque and excellent stability.
For smooth and safe operation, it includes a star-delta soft start system and automatic reverse overload protection, protecting the machine from overload and jamming.
| Model | TRIO TS10 |
| Output (TPH) | 10* |
| Chamber Dimensions (mm) | 1500*1000 |
| Rotary Speed (RPM) | 10–12 |
| Rated Power (Kw) | 75+75 |
| Number of Blades(Pc) | 36 |
| Blade Diameter (mm) | 400 |
| Blade Thickness (mm) | 40 |
| hexagonal type (mm) | 245 |
| Quantity (Pc) | 36 |
| Soft start using a star-delta voltage reduction connection | Included |
| Automatic reverse overload. | Included |
Trio Shredder Machine
Standard Shredder TRIO TS10HD
The TRIO TS10HD is a high-performance heavy-duty machine designed for demanding industrial applications, delivering an output of 10 TPH. It features a large 1500 × 1100 mm chamber, 12–15 RPM rotary speed, and a powerful 90 + 90 kW rated motor, making it ideal for continuous and high-load operations. The machine is equipped with 30 heavy-duty blades with a 560 mm diameter and 50 mm thickness, ensuring superior cutting strength and long service life, while the 310 mm hexagonal shaft provides maximum torque and stability.
For smooth, safe, and efficient operation, the TRIO TS10HD includes a star-delta soft start system and automatic reverse overload protection, reducing startup stress and preventing damage during overload or jamming conditions.
| Model | TRIO TS10HD |
| Output (TPH) | 10* |
| Chamber Dimensions (mm) | 1500*1100 |
| Rotary Speed (RPM) | 12–15 |
| Rated Power (Kw) | 90+90 |
| Number of Blades(Pc) | 30 |
| Blade Diameter (mm) | 560 |
| Blade Thickness (mm) | 50 |
| hexagonal type (mm) | 310 |
| Quantity (Pc) | 30 |
| Soft start using a star-delta voltage reduction connection | Included |
| Automatic reverse overload. | Included |
