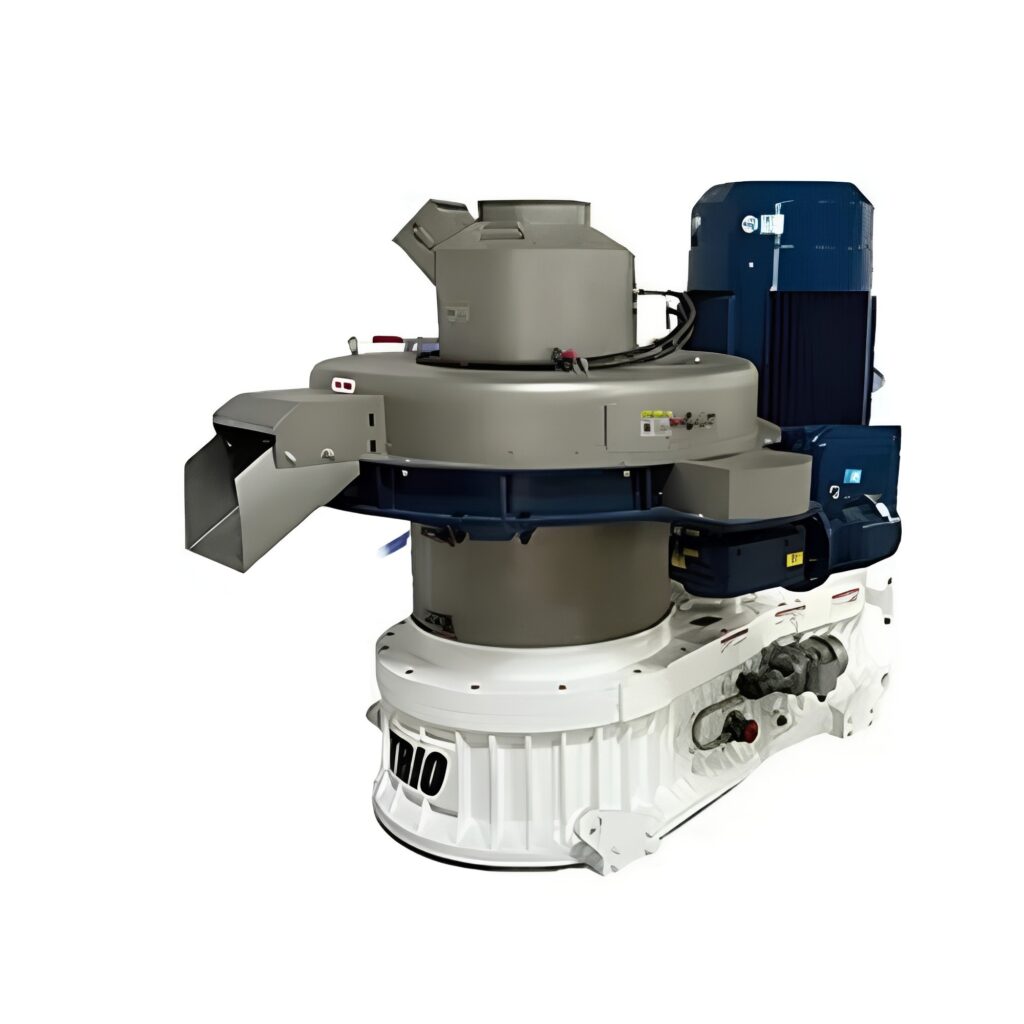

Vertical Ring Die Pellet Making Machine - Model 560
TRIO 560-90
The TRIO 560 is a high-performance pellet machine designed for consistent output and long-term reliability. It is powered by a 90 kW main motor, ensuring smooth and efficient operation even under heavy load. To support stable performance, the machine includes a 2.2 kW kickout motor, along with dedicated oil (0.75 kW) and grease (0.2 kW) pumps for proper lubrication and reduced maintenance.
A mini cyclone (0.75 kW) helps in better dust control and cleaner operation. The machine comes with a radiator fan included for effective cooling, increasing motor life and overall efficiency. For smarter control and energy optimization, it is equipped with a Smart IoT Panel with VFD, allowing precise speed control and real-time monitoring.
With 2 roller assemblies and 1 die, the TRIO 560 delivers stable pellet formation. It supports pellet sizes ranging from 6–12 mm and offers an impressive output capacity of 1–1.5 TPH, making it ideal for medium to large-scale pellet production.
| Model | TRIO 560-90 |
| Main Motor (kw) | 90 |
| Kickout Motor (kw) | 2.2 |
| Oil Pump (kw) | 0.75 |
| Grease Pump (kw) | 0.2 |
| Mini Cyclone (kw) | 0.75 |
| Radiator Fan (kw) | Included |
| Smart IOT Panel with VFD | Included |
| No of Roller Assembly | 2 |
| No of Die | 1 |
| Pellet Size (mm) | 6-12 |
| Output (TPH) | 1-1.5 |
Vertical Ring Die Pellet Making Machine - Model 560
TRIO 560-132
The TRIO 560 is a powerful and reliable pellet machine designed for high-capacity production. It is equipped with a 132 kW main motor for strong and stable performance, along with a 2.2 kW kickout motor for smooth overload protection. The machine includes an oil pump (0.75 kW) and grease pump (0.2 kW) to ensure proper lubrication and longer component life, while a 0.75 kW mini cyclone helps maintain cleaner operation.
A radiator fan is included for effective cooling, and the Smart IoT Panel with VFD allows precise control, energy efficiency, and real-time monitoring. With 2 roller assemblies and 1 die, it supports pellet sizes from 6–12 mm and delivers an output capacity of 1.5–2 TPH*, making it ideal for medium to large-scale pellet production.
| Model | TRIO 560-132 |
| Main Motor (kw) | 132 |
| Kickout Motor (kw) | 2.2 |
| Oil Pump (kw) | 0.75 |
| Grease Pump (kw) | 0.2 |
| Mini Cyclone (kw) | 0.75 |
| Radiator Fan (kw) | Included |
| Smart IOT Panel with VFD | Included |
| No of Roller Assembly | 2 |
| No of Die | 1 |
| Pellet Size (mm) | 6–12 |
| Output (TPH) | 1.5–2* |
Vertical Ring Die Pellet Making Machine - Model 560
TRIO 560-160
The TRIO 560 is a high-capacity pellet machine built for demanding industrial use and continuous production. It is powered by a 160 kW main motor, delivering strong torque and stable performance, supported by a 2.2 kW kickout motor for overload protection. The machine features an oil pump (0.75 kW) and grease pump (0.2 kW) to ensure proper lubrication and longer service life, along with a 0.75 kW mini cyclone for cleaner and more efficient operation.
A radiator fan is included for effective cooling, while the Smart IoT Panel with VFD enables precise control, energy efficiency, and real-time monitoring. With 2 roller assemblies and 1 die, it supports pellet sizes from 6–12 mm and delivers a high output capacity of 2–2.5 TPH*, making it ideal for large-scale pellet production.
| Model | TRIO 560-160 |
| Main Motor (kw) | 160 |
| Kickout Motor (kw) | 2.2 |
| Oil Pump (kw) | 0.75 |
| Grease Pump (kw) | 0.2 |
| Mini Cyclone (kw) | 0.75 |
| Radiator Fan (kw) | Included |
| Smart IOT Panel with VFD | Included |
| No of Roller Assembly | 2 |
| No of Die | 1 |
| Pellet Size (mm) | 6–12 |
| Output (TPH) | 2–2.5* |
Vertical Ring Die Pellet Making Machine - Model 560
TRIO 700-160
The TRIO 700-160 is a high-efficiency pellet machine designed for stable and continuous production with an output capacity of 2.5–3 TPH. It is powered by a strong 160 kW main motor, supported by a 2.2 kW kickout motor, 0.75 kW oil pump, 0.2 kW grease pump, and 0.75 kW mini cyclone for smooth and reliable operation.
The machine features 2 roller assemblies and 1 die, producing uniform pellets in the 6–12 mm size range. For advanced performance and easy control, it comes with a Smart IoT panel with VFD, while the radiator fan ensures effective cooling. Built for durability and efficiency, the TRIO 700-160 is ideal for industrial-grade pellet production.
| Model | TRIO 700-160 |
| Main Motor (kw) | 160 |
| Kickout Motor (kw) | 2.2 |
| Oil Pump (kw) | 0.75 |
| Grease Pump (kw) | 0.2 |
| Mini Cyclone (kw) | 0.75 |
| Radiator Fan (kw) | Included |
| Smart IOT Panel with VFD | Included |
| No of Roller Assembly | 2 |
| No of Die | 1 |
| Pellet Size (mm) | 6–12 |
| Output (TPH) | 2.5–3* |
Vertical Ring Die Pellet Making Machine - Model 560
TRIO 850-250
The TRIO 850 is a heavy-duty, high-output pellet machine engineered for large-scale industrial production. It is driven by a powerful 250 kW main motor, delivering exceptional torque and stable performance, supported by a 3 kW kickout motor for reliable overload protection. The machine includes an oil pump (0.75 kW) and a grease pump (0.2 kW) to ensure continuous lubrication and longer component life, along with a 0.75 kW mini cyclone for cleaner and more efficient operation.
A radiator fan is included for effective cooling, while the Smart IoT Panel with VFD provides precise speed control, energy efficiency, and real-time monitoring. Equipped with 2 roller assemblies and 1 die, the TRIO 850 supports pellet sizes from 6–14 mm and delivers a high output capacity of 3.5–4 TPH*, making it ideal for high-capacity pellet manufacturing plants.
| Model | TRIO 850 |
| Main Motor (kw) | 250 |
| Kickout Motor (kw) | 3 |
| Oil Pump (kw) | 0.75 |
| Grease Pump (kw) | 0.2 |
| Mini Cyclone (kw) | 0.75 |
| Radiator Fan (kw) | Included |
| Smart IOT Panel with VFD | Included |
| No of Roller Assembly | 2 |
| No of Die | 1 |
| Pellet Size (mm) | 6–14 |
| Output (TPH) | 3.5–4* |
